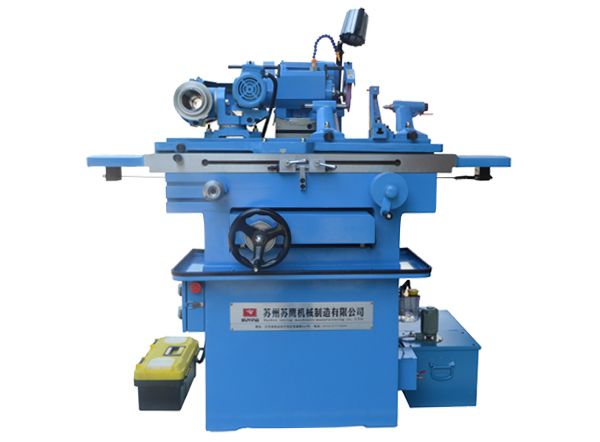

MQ6025ATool grinder
This machine is suitable for sharpening high-speed steel, cemented carbide or other materials, and it is also convenient for grinding outer circles, flat grooves and forming surfaces. If equipped with special accessories, it can also grind all kinds of gears, worm hobs, forming knives, ball mills, twist drills, cone reamers, etc.
Online Message+
product details
This machine is suitable for sharpening high-speed steel, cemented carbide or other materials, and it is also convenient for grinding outer circles, flat grooves and forming surfaces. If equipped with special accessories, it can also grind all kinds of gears, worm hobs, forming knives, ball mills, twist drills, cone reamers, etc.
The machine tool's grinding wheel frame mechanism is flexible and can be adjusted in two degrees. The working head frame can be rotated in both directions and has an international standard No. 50 taper hole, which is convenient for installing various tools and fixtures. The worktable is supported on the linear guide rail of the load and runs smoothly.
Model type MQ6025A
Maximum turning diameter of workpiece on thimble 250mm
Distance between front and rear thimbles 630mm
Working table size (length x width) 940x135mm
Maximum longitudinal movement of table 480mm
Maximum swivel angle of table 120 ° (60 °)
Grinding head (or slide) maximum horizontal movement 230mm
The minimum distance between the centerline of the grinding wheel and the centerline of the thimble 50mm
Maximum distance between grinding wheel centerline and thimble centerline 280mm
Grinding head vertical movement 230mm
The centerline of the grinding wheel rises to the centerline of the thimble by 175mm
The centerline of the grinding wheel drops to the centerline of the thimble by 55mm
Grinding head rotation angle 360 ° in horizontal plane
Grinding head rotation angle within 30 ° (± 15 °) in vertical plane
Spindle end taper Morse 3 # taper
Grinding head motor (50HZ) Power 0.85 / 1.1kw
Speed 1400 / 2800rpm
Grinding head spindle speed 3010 / 6010rpm
Grinding external attachment motor (50HZ) Power 0.25kw
Speed 1400rpm
Minimum machine contour size (length x width x height) 1650x1150x1500mm
Machine weight 940kg
