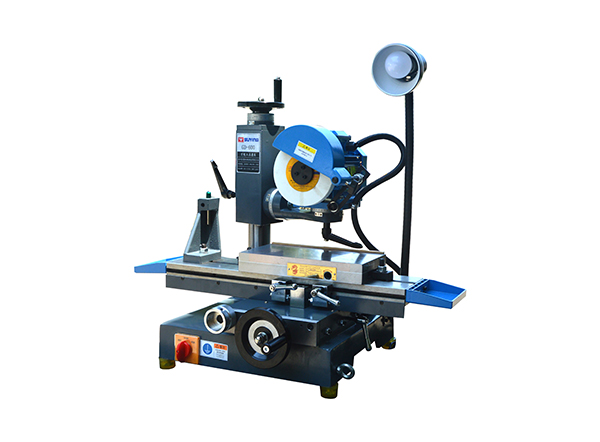

GD-600Small surface grinder
1. The precision linear ball slide is adopted, the bed is stable, and the operation is light.
2. Various grinding accessories can be installed to complete the grinding of various tools.
3. Simple setting.
4. Easy to operate.
5. Accurate and fast grinding.
       The tool grinding machine is equipped with various fixture energy grinding turning tools, three-sided edge milling cutters, hobbing cutters, drills, taps and other mechanical cutting tools. With suction cup can be used as a surface grinder!

Online Message+
product details
GD-600 Tool Grinder
Related introduction:
1. The precision linear ball slide is adopted, the bed is stable, and the operation is light.
2. Various grinding accessories can be installed to complete the grinding of various tools.
3. Simple setting.
4. Easy to operate.
5. Accurate and fast grinding.
       The tool grinding machine is equipped with various fixture energy grinding turning tools, three-sided edge milling cutters, hobbing cutters, drills, taps and other mechanical cutting tools. With suction cup can be used as a surface grinder!

     Type GD-600
  Left and right stroke of table 245mm
  Back and forth stroke of table 175mm
  Table size 130x600mm
  Lifting distance of wheel head 140mm
  Grinding wheel head rotation angle -55 ° ~ 70 °
  Grinding wheel size (standard one) 125x45x32mm (bowl-shaped white steel jade)
   150x20x32mm (parallel white steel jade)
  The height from the lowest point of the wheel to the table (bowl-shaped white steel jade wheel) 80mm
  The height from the highest point of the grinding wheel to the table (bowl-shaped white steel jade grinding wheel) 220mm
  The height from the lowest point of the grinding wheel to the table (parallel white steel jade grinding wheel) 70mm
  The height from the highest point of the grinding wheel to the table (parallel white steel jade grinding wheel) 210mm
  Grinding wheel speed 2800rpm
  Power / Voltage / Frequency / Current 550W / 220V / 380V / 50Hz / 3.9A
  Net weight / Gross weight 100KG / 120KG
  Machine size length x width x height 400x420x535mm
  Package size length x width x height 770x750x710mm
  Grinding plane workpiece size up to 245mm up to 50mm wide

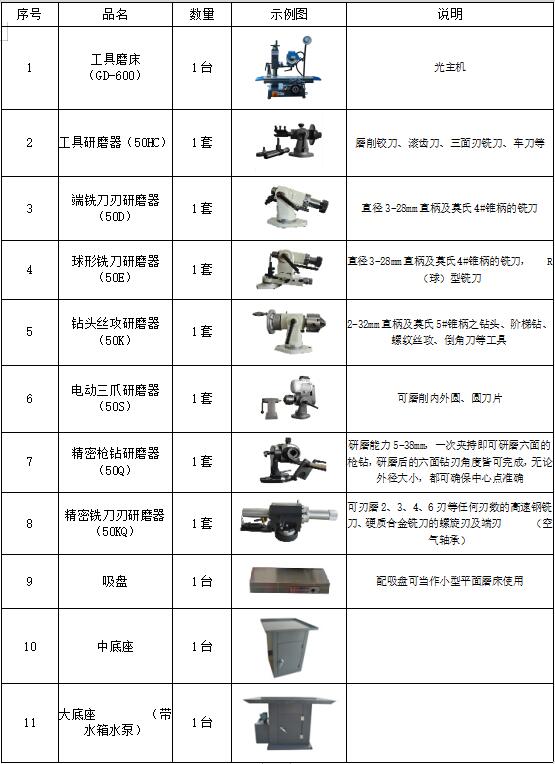

Optional accessories for grinding machine:
